OpenMV M7 and H7 CAD models

Project Discussion
#1

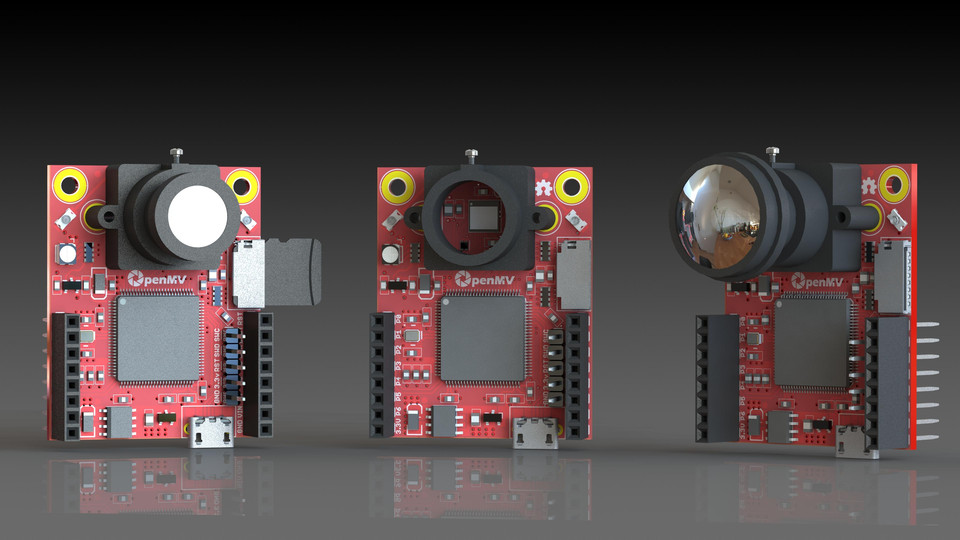

I made a detailed CAD 3d model for my project.
Hope it will be useful to someone else :wink:

Get it at grabcad: https://grabcad.com/library/openmv-cam-m7-1
You need Solidworks 2016 or higher to open it.

960×540 113 KB

Update: H7 model https://grabcad.com/library/openmv-h7-camera-1

960×540 53.8 KB

#2

I added a link to this on the bottom of the product page.

#3

If this was reddit, you would be swimming in the gold! This is helpful to my projects!

#4

mutronics, would you be interested in making a model for the H7? We’d offer to help pay for it to be made. A lot of folks are asking about an H7 model.

#5

H7 CAD model is done. No funding required. https://grabcad.com/library/openmv-h7-camera-1
Thank you for great product!

#6

Awesome! I’ll link to it!
